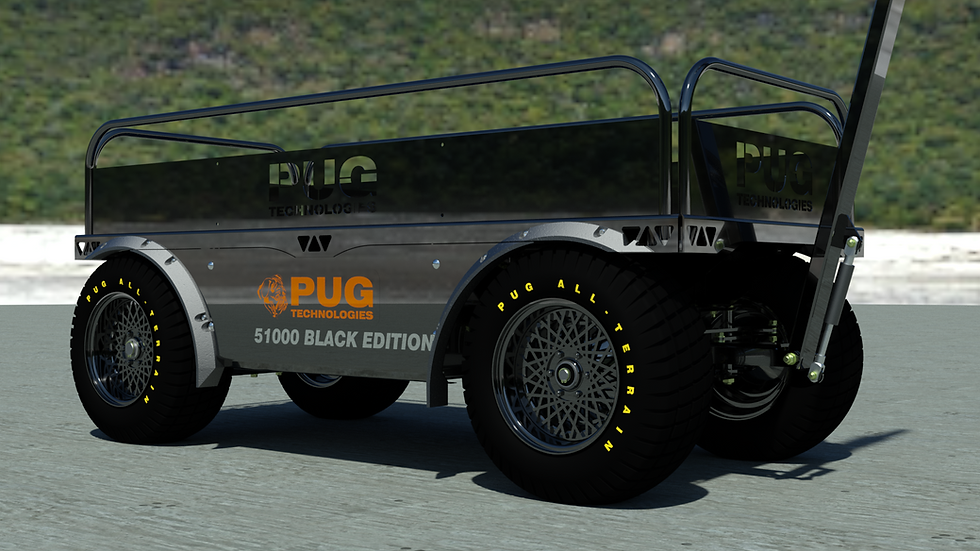

51000 Electric All-Terrain Utility Cart 25" x 56" Flatbed Deck LOW RIDER

The new 51000 series Electric Utility Carts capable of 1500lbs loads. It is designed to fit through standard doorways, elevators and pick truck boxes. Its equipped with a single 3/4HP (550W) electric motor and 30:1 worm gearbox producing over 66ft-lbs of torque and powered by a LiFePO4 100Ah battery pack for longer run time and a 20 amp charger for shorter charge times.

Performance

100Ah 12V LiFePO4 Battery Charging @ 20A = 5 hrs Charge Time

3/4HP (550W) 12VDC Motor

Unloaded 15Amps = 6.67 Hours Runtime = 17.9km Distance

Loaded 63.9 F.L.A. = 1.57 Hours Runtime = 4.2km Distance

Duty: Continuous Air Cooled

MAX PAYLOAD (30:1 GEARBOX & 550W MOTOR) -1215 LBS @ 5% (2.86°) Slope Walkways & Wheelchair Ramps -1000 LBS @ 8% (4.57°) Streets & Roads -450 LBS @ 15% (8.53°) Parking Garage Ramps MAX PAYLOAD (50:1 GEARBOX & 550W MOTOR)

-1255 LBS @ 5% (2.86°) Slopes , Walkways & Wheelchair Ramps

-1255 LBS @ 8% (4.57°) Streets & Roads

-850 LBS @ 15% (8.53°) Parking Garage Ramps
