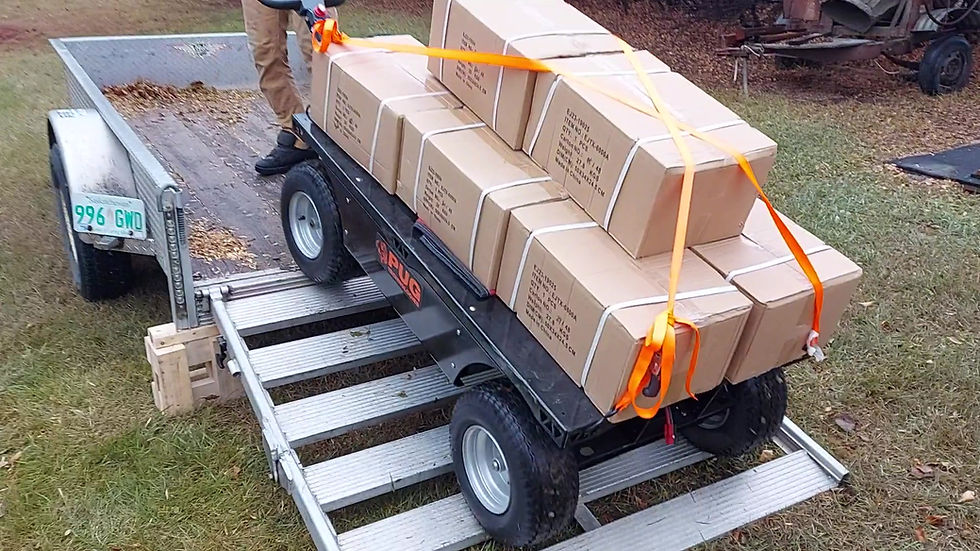

50000 Electric All-Terrain Pallet Truck 25" x 56" Deck

50000 Electric All-Terrain Utility Cart 25" x 56" Deck

SKU: 50000

The new 50000 series trucks are capable of 1500lbs loads. It is designed to fit through standard doorways, elevators and pick truck boxes. Its equipped with a single 3/4HP (550W) electric motor and 30:1 worm gearbox producing over 66ft-lbs of torque and powered by a LiFePO4 100Ah battery pack for longer run time and a 20 amp charger for shorter charge times.



Performance

100Ah 12V LiFePO4 Battery Charging @ 20A = 5 hrs Charge Time

3/4HP (550W) 12VDC Motor

Unloaded 15Amps = 6.67 Hours Runtime = 17.9km Distance

Loaded 63.9 F.L.A. = 1.57 Hours Runtime = 4.2km Distance

Duty: Continuous Air Cooled

MAX PAYLOAD (30:1 GEARBOX & 550W MOTOR)
-1210 LBS @ 5% (2.86°) Slope Walkways & Wheelchair Ramps
-955 LBS @ 8% (4.57°) Streets & Roads
-445 LBS @ 15% (8.53°) Parking Garage Ramps
MAX PAYLOAD (50:1 GEARBOX & 550W MOTOR)

-1210 LBS @ 5% (2.86°) Slopes , Walkways & Wheelchair Ramps

-1210 LBS @ 8% (4.57°) Streets & Roads

-805 LBS @ 15% (8.53°) Parking Garage Ramps

PriceFrom C$6,359.00
